Aureon Pressure Lens [JOAT]

Aureon Pressure Lens [JOAT]

Introduction

Aureon Pressure Lens is an open-source pressure oscillator designed to classify directional participation, conviction, and transition states in a separate pane. It blends price impulse, EMA structure, momentum, range location, candle body pressure, and relative volume into one bounded score.

The problem it solves is signal quality. A single oscillator can fire during weak, low-participation moves. Aureon Pressure Lens requires pressure, signal-line behavior, relative volume, and component consensus to align before confirmed buy or sell labels appear.



Core Concepts

1. Multi-Component Pressure Blend

The oscillator uses several independent inputs: impulse from prior price, fast/slow structural slope, normalized momentum, range position, and candle body direction.

2. Tanh Normalization

Each component is normalized into a stable bounded range so one volatile input does not dominate the entire reading.

pressureScore = f_tanh(pressureBlend * 1.60) * 100.0
signalLine    = ta.ema(pressureScore, signalLength)

3. Consensus Filter

The confidence reading measures how closely the components agree. A signal must satisfy the minimum conviction threshold before it can print.

4. Relative Volume Participation

The script measures current volume against a moving average and uses that reading as a participation gate. The default is permissive enough for broad use while still filtering extremely quiet conditions.

Features

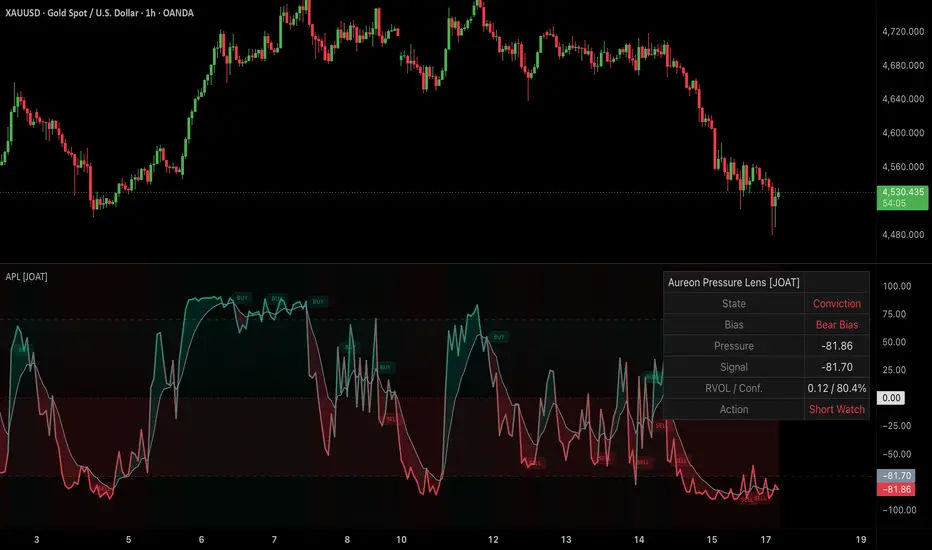

• Separate-pane pressure score: Bounded -100 to +100 directional pressure reading
• Signal line: Smoothed reference for pressure resets and crossovers
• Gradient pressure color: Score color transitions between bearish, neutral, and bullish states
• Pressure cloud: Optional fill between pressure and signal line
• Confirmed BUY/SELL labels: Closed-bar events filtered by consensus and RVOL
• Top-right dashboard: State, bias, pressure, signal, RVOL/conviction, and action
• Alerts: Bullish and bearish confirmed pressure resets

Input Parameters

Calculation:

• Core Lookback: Main analysis window for impulse and range context
• Fast Lens / Slow Lens: EMA structure lengths
• Signal Lens: Smoothing length for the signal line
• Pressure Sensitivity: Normalization intensity
• Min Relative Volume: Participation gate for labels
• Min Conviction: Minimum component agreement required for labels

How to Use This Indicator

Step 1: Read the pressure score relative to zero.
Step 2: Use the cloud and signal line to identify pressure resets.
Step 3: Check dashboard conviction and RVOL before acting on labels.
Step 4: Combine with an overlay structure or regime tool for full chart context.

Indicator Limitations

• The oscillator measures current pressure, not future price direction
• Relative volume can behave differently on symbols with limited volume data
• Choppy markets can create repeated signal-line crosses
• Confirmed labels appear only after the bar closes

Originality Statement

Aureon Pressure Lens is original because it combines impulse, structure, momentum, range position, candle body pressure, relative volume, and component consensus into a single closed-bar pressure engine with a dedicated dashboard. It does not copy third-party source code.

Disclaimer

This open-source indicator is for educational and informational purposes only. It is not financial advice. Markets can change quickly, and no pressure reading guarantees a future move. Use risk controls and independent analysis.

-Made with passion by jackofalltrades
