RPFXBYDAN - Untouched Session Liquidity - Asia / London / NYRPFXBYDAN - Untouched Session Liquidity — Asia / London / NY
**What this script does**
This indicator marks the high and low of each Asia, London, and New York trading session and projects those two levels forward as horizontal lines. Unlike a standard session-range indicator that leaves every past level on the chart, this one automatically deletes any level the moment price reaches it. The result is a running inventory of the recent session highs and lows that price has NOT yet run — the liquidity that is still "live" on the chart.
By default the script keeps the ten most recent sessions per region so you can see whether the current market is respecting, sweeping, or ignoring older session extremes.
**Why session highs and lows matter**
Session highs and lows tend to attract price because they collect a predictable pool of stop-loss orders — protective stops from participants who entered inside the previous session's range. Price often gravitates toward these levels, sweeps the liquidity, and reverses. Knowing which specific levels are still untaken (versus already mitigated) is more actionable than seeing every historical level indiscriminately, because only untaken levels still hold that liquidity.
**How the script works, step by step**
1. On every bar, the script checks whether the bar falls inside the Asia, London, or New York session window, using Pine's timezone-aware time function so detection is correct on any chart regardless of the user's timezone settings.
2. While a session is active, it tracks the running high and low and remembers the bar index at which each was set.
3. The instant a session closes (the first bar the session check flips from true to false), it draws two horizontal lines anchored at those bar indexes — one at the session high, one at the session low — with a text label naming the region.
4. Each new line and label is pushed onto a per-region array. If the array now holds more than the configured lookback count (default ten), the oldest entry is shifted off and deleted.
5. On every subsequent bar, the script walks the array of active lines and compares the current candle's high to each high level and the current candle's low to each low level. Any line whose level has been reached is deleted along with its label. Any line not yet touched has its right edge advanced so the projection stays anchored to the current bar.
The touch check is the mechanism that keeps the chart focused only on liquidity that hasn't been taken yet — it's what differentiates this from a normal "show previous session range" indicator.
**Timezone handling**
The default Auto mode detects each session in its own home timezone: Asia in Tokyo time, London in London time, and New York in New York time. Because Pine's time function accepts a timezone argument, the detection is correct regardless of what timezone your chart is set to, and daylight saving transitions are handled automatically. If you'd rather have all three sessions interpreted in one specific timezone (for example, always in your local one), the location dropdown lets you select from a menu of common cities and UTC offsets, and the session windows will be read in that timezone instead.
**Inputs**
- Your Location / Timezone — Auto (recommended) or a specific city / UTC offset
- Asia, London, New York Session windows — defaults calibrated to each session's home clock time
- Sessions to Keep — how many recent sessions per region to display (default 10)
- Colors per region, line width, line style, right-extension length, label toggle
**How to use it**
Add the indicator to a 5-minute, 15-minute, 30-minute, or 1-hour chart of any symbol. Give the chart a few days of history to load so the script can walk through session closes and populate the levels. Watch how price interacts with the untaken lines — a clean sweep of an old session high can precede a reversal, while price trading through a level without pausing suggests continuation. Because touched levels are removed automatically, whatever remains on the chart at any moment is the current "menu" of session liquidity worth watching.
Works on any instrument, though it's most useful on FX pairs, index futures, and crypto where session structure is meaningful. Higher timeframes (4H+) compress sessions into a single bar and reduce the value of the lines.
**Notes**
Session detection uses each session's home timezone in Auto mode; in manual mode you select a single timezone that applies to all three. Both modes automatically handle daylight saving. Indicator
Best Sessions - New York, London & Asia - Xcelerate TradeXcelerate — Best Sessions: New York, London & Asia | Xcelerate Trade
A professional session-mapping overlay from the Xcelerate Trade team. It highlights the three major forex / index trading windows — Asia, London (Europe) and New York — plus a full daily range toolkit, all anchored to America/New_York (EST/EDT). Built for intraday traders who plan entries around session highs/lows, daily open/close and kill-zone timing.
What you get on the chart
Three session boxes (intraday only)
Each session draws a live box from session open to the current bar, then freezes it as history when the session ends:
Session Default window (EST) Color
Asia
20:00 → 05:00
Yellow
London
03:00 → 12:00
Blue
New York
09:30 → 16:00
Red
Live box — grows with price during the active session (high/low tracked in real time).
Historical boxes — completed sessions saved to chart history (FIFO cap per session).
Outline-only mode — optional per session: border highlight with transparent fill (“Daily Highlights” style).
Session times are fully editable via input.session — adapt them to your broker’s server time or personal kill-zone preferences.
Daily box (00:00 → 24:00 NY)
Current day — live lime box from midnight NY to midnight NY, expanding with the day’s high/low.
Historical days — completed daily ranges saved to history (default keep: 31 days).
Outline-only — optional transparent fill for a cleaner chart.
Daily high / low labels
D Hi and D Lo labels at the exact timestamp of the day’s extreme.
Separate toggles for historical and live labels.
Customizable colors, decimal precision and vertical offset (ticks).
Daily open / close lines
Horizontal Open line (purple by default) and Close/Last line (gray) spanning the full NY trading day.
Optional historical and live price labels on the lines.
Label placement by ticks or percentage offset from the daily range.
Global controls
Show Asia / Europe / New York — master toggles to hide entire sessions without digging into each group.
Per-session history — independent keep limits (default 31 sessions each).
Smart drawing guards — automatic FIFO caps scaled to your timeframe so you never hit TradingView’s object limits (boxes, lines, labels). Works from 1-second charts up to monthly.
Timezone accuracy
All session detection and daily rollover use America/New_York consistently:
Session time() checks use the NY timezone string.
Daily box boundaries use timestamp(TIMEZONE, …) at 00:00 NY.
Daily open pulled via request.security(..., "1D", open) for alignment with the daily candle.
This keeps Asia / London / NY boxes and the daily box synchronized — no drift between session logic and daily logic.
Suggested settings
Forex (EURUSD, GBPUSD, XAUUSD) on 1m–15m: all three sessions ON, daily box + D Hi/Lo labels ON, open/close lines ON.
US indices (SPX, NQ) on 1m–5m: focus on New York session; optionally hide Asia if your broker’s overnight session is quiet.
Cleaner chart: enable Outline only on sessions and/or daily box; turn off historical labels if you only care about today.
Higher timeframes (1H+): session boxes auto-disable on daily+ charts (isIntraday guard) — only the daily toolkit remains active.
Inputs overview
Group What you control
Session schedules
Asia / London / NY time windows
Colors
Fill + border per session and daily
Daily Box
Historical + live, outline mode
Daily Labels
Hi/Lo labels, colors, offsets
Asia / London / NY
Per-session historical + live toggles
GLOBAL
Master show/hide per session
Daily Lines
Open/Close lines + labels
Promo Banner
Flash timing (minutes hidden / seconds visible)
Notes & disclaimers
Session boxes appear on intraday timeframes only (below 1D). On daily/weekly charts the session engine is disabled automatically.
Session boxes track the high/low range inside the window, not volume or order flow — use them as a time + range reference, not as a signal generator.
Default session times follow common EST conventions; verify against your broker if you trade instruments with different session cuts (e.g. futures RTH vs ETH).
Pine Script v6.
Built and maintained by the Xcelerate Trade team. Asia, London and New York session boxes + daily range, Hi/Lo labels and open/close lines — all in one clean, NY-timezone-aware overlay.
Indicator

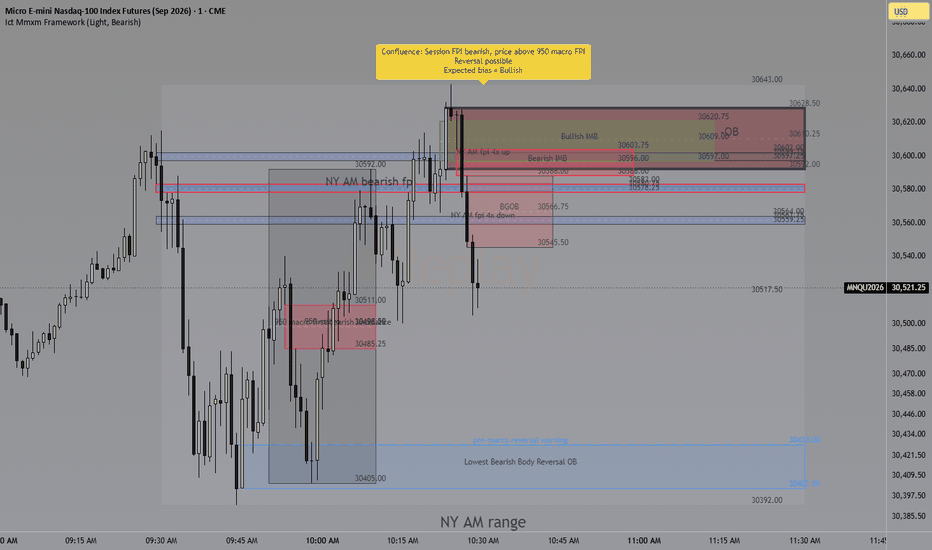

Ict Mmxm Frameworkict mmxm framework is a session-based market structure tool designed to organize intraday price delivery around fpi zones, macro windows, order blocks, imbalances, breakaway gap order blocks, opening ranges, and session range structure.
The script is built to help traders study how price behaves during the asian, london, new york morning, lunch, and new york afternoon sessions. It separates each major session into its own visual components so the user can compare pre-session ranges, active session ranges, macro windows, fpi areas, imbalance areas, order block zones, breakaway gap order blocks, and opening range levels.
Main components:
* pre-asian range from 7:00 pm to 9:00 pm new york time
* asian range from 9:00 pm to 12:00 am new york time
* asian macro windows at 6:50 pm to 7:10 pm, 8:50 pm to 9:10 pm, and 12:50 am to 1:10 am
* pre-london range from 2:00 am to 3:00 am new york time
* london range from 3:00 am to 5:00 am new york time
* london macro windows at 1:50 am to 2:10 am, 2:50 am to 3:10 am, and 4:50 am to 5:10 am
* new york morning, lunch, and afternoon session structure
* fpi visualization for asian, london, and new york sessions
* separate fpi detection for asian and london macro windows
* selected-bias imbalance mapping
* selected-bias order block mapping
* breakaway gap order block mapping
* high, midpoint, and low price labels for imbalance, order block, and breakaway gap order block zones
* opening range levels for the new york morning and afternoon sessions
* configurable session visibility and visual settings
The asian and london sections include range boxes, high and low references, midpoint references, macro windows, fpi areas, selected-bias imbalance zones, selected-bias order block zones, and breakaway gap order block context. These components are intended to help traders compare how price develops from one session into the next.
The selected expected bias controls how the main imbalance and order block zones are emphasized. When bearish bias is selected, the framework focuses on the highest relevant bullish order block and premium-side imbalance context. When bullish bias is selected, the framework focuses on the lowest relevant bearish order block and discount-side imbalance context.
The order block, imbalance, and breakaway gap order block zones use soft transparent colors based on the selected expected bias. Bearish bias uses red-toned zones, while bullish bias uses green-toned zones. This is intended to keep the chart visually aligned with the selected directional framework.
The purpose of this script is to provide a structured visual framework for studying session-based delivery, liquidity reference points, fpi behavior, macro timing, order blocks, imbalances, breakaway gap order blocks, and projected levels. It is intended for market context, discretionary planning, and research.
This script does not generate guaranteed trade signals, does not predict future price movement, and does not provide financial advice. It should be used together with independent analysis and proper risk management.
Asian Session:
London Session:
Ny Session:
Indicator
Tokyo London New York Session HighlighterTokyo London New York Session Highlighter shades the Tokyo, London and New York trading sessions directly on the chart background so users can see time-of-day context at a glance. It is a visual aid for intraday charts.
Each session is defined by its own hours, day mask and IANA timezone, so the correct local times are used throughout the year, including daylight-saving changes in London and New York.
### Features
- Background shading for the Tokyo, London and New York sessions, each with its own color, transparency and on/off switch.
- Overlap handling: choose a dedicated color for periods when more than one session is active, or use a Priority order of New York over London over Tokyo.
- Optional session start/end markers with neutral session codes: TYO, LDN and NY.
- Optional active-session high and low plotted only while that session is open.
- Optional compact top-right table showing each session's Active/Inactive state and the number of sessions currently active.
- Optional informational session start/end alerts.
### Inputs
- Sessions: enable/disable, hours, timezone and day mask for each of the three sessions.
- Day mask: 23456 = Monday to Friday, 1234567 = every day.
- Colors: color and transparency for each session and for overlaps.
- Display: overlap handling, markers, active high/low, and the status table.
- Alerts: a single switch for session start/end alerts.
### How it works
The script checks, for every bar, whether the bar falls inside each configured session using TradingView's time engine and the session's IANA timezone.
A session start is the first bar inside the session after a bar outside it. A session end is the first bar outside the session after a bar inside it.
No higher-timeframe requests are used. The script reads only the current chart's bars and time.
### Default session references
- Tokyo: 09:00-18:00, Asia/Tokyo
- London: 08:00-17:00, Europe/London
- New York: 08:00-17:00, America/New_York
These defaults are practical regional time references for intraday analysis. They are not universal market rules and may not match every broker, exchange, product, holiday schedule, or early close. Users can adjust the session times, timezones and active days in the Inputs tab.
### Originality and usefulness
This script is not only a static three-color background tool. It adds several practical context features:
1. Timezone-aware sessions
Each major session can use its own local IANA timezone. This helps London and New York remain aligned with local time changes such as daylight saving time.
2. Explicit overlap handling
When multiple sessions are active at the same time, the script can either use a dedicated overlap color or a clear priority order. This makes overlapping trading periods easier to identify.
3. Current-session range context
Optional high/low plots show the developing range of the active session. This can help users compare current price movement with that session's own developing range.
4. Compact active-session table
The table shows which sessions are currently active and how many sessions are active at the same time. This gives a quick status view without adding another pane.
5. Clean, non-directional design
The script does not label market direction, classify trend, or suggest a trading action. It only visualizes time-based context.
### Limitations
- Designed for intraday charts. On daily or higher timeframes, the script displays an informational notice and does not shade sessions.
- Session backgrounds only appear where bars exist on the chart. If a symbol has no trading data during a period, the script cannot fill missing bars.
- Holiday schedules, broker-specific trading breaks, exchange-specific sessions, and early closes are not detected automatically.
- Default session times are user-adjustable references, not universal market rules.
- It reflects the session hours and timezones configured by the user; users should verify them against the instrument and data feed.
- It shows time-of-day context only and does not analyze price beyond plotting the optional high/low of the active session.
### What this script does not do
- It does not generate trade signals.
- It does not provide entries, exits, targets, or position sizing.
- It does not predict future price movement.
- It does not claim improved performance, accuracy, or profitability.
- It does not use future data.
- It is not a strategy or backtest system.
- It is not financial advice.
### Suggested use
Use this on intraday charts where session timing is relevant, such as FX, index CFDs, futures, or other markets where regional trading activity may matter. Keep the chart clean so the session backgrounds, overlap periods, and optional range plots remain easy to read.
### Japanese notes / 日本語補足
このインジケーターは、東京・ロンドン・ニューヨークの各セッションをチャート背景色で可視化する、日中足向けの時間帯コンテキストツールです。
目的は、セッションごとの値動きの違いや、ロンドン・ニューヨークなどの重複時間帯を見やすくすることです。売買シグナル、エントリー、エグジット、目標値、ポジションサイズの提案は行いません。
主な機能
- 東京・ロンドン・ニューヨークの背景色表示
- セッション重複時の専用カラー表示、または優先順位表示
- セッション開始・終了マーカーの任意表示
- 現在進行中のセッション高値・安値ラインの任意表示
- 現在アクティブなセッションを表示する小型テーブル
- 各セッションの時間帯・曜日・タイムゾーン・色・透明度の調整
- セッション開始・終了の情報通知アラート
このスクリプトは日中足向けです。日足以上の時間足では、背景色によるセッション表示は行わず、情報メッセージのみを表示します。
初期値は一般的な地域別時間帯の参考設定であり、特定のブローカー、取引所、銘柄、祝日、短縮取引を完全に反映するものではありません。必要に応じて各自の取引対象に合わせて調整してください。
このスクリプトは、相場の時間帯を把握するための可視化ツールです。将来の値動き、成績、勝率、精度を示唆または保証するものではありません。投資助言ではありません。 Indicator
Indicator
Elaris Session Strength Indicator## Elaris Session Breakout Pro
Elaris Session Breakout Pro is a clean and professional session-based trading indicator designed to help traders identify high-probability breakout opportunities during key market sessions such as London and New York.
The indicator automatically tracks the opening range of the selected session and highlights breakout confirmations when price closes above or below the defined session range. This allows traders to quickly spot momentum expansion, liquidity-driven moves, and potential intraday trend continuation setups without manually drawing levels.
Built with a strong focus on clarity, usability, and real-time decision support, the indicator is optimized for scalpers, day traders, and momentum traders across crypto, forex, and index markets.
### Key Features
• Automatic session opening range detection
• Dynamic breakout signals for bullish and bearish moves
• Non-repainting breakout confirmations
• Clean chart visualization with minimal clutter
• Configurable session timings and breakout logic
• Visual breakout labels and session range plotting
• Suitable for crypto, forex, and traditional markets
• Optimized for lower timeframes and intraday trading
### How It Works
The indicator monitors the first candle or opening range of the selected trading session. When price successfully closes above the session high, a bullish breakout signal is generated. When price closes below the session low, a bearish breakout signal is generated.
This approach helps traders identify moments where liquidity and volatility expand during active market hours, often leading to strong directional movement.
### Best Use Cases
• London session breakout trading
• New York open momentum trades
• Crypto volatility expansion setups
• Intraday trend continuation strategies
• Liquidity and range breakout confirmation
### Notes
Like all trading indicators, this tool should be used as part of a complete trading plan with proper risk management and confirmation techniques. Market conditions can vary, and no indicator guarantees profitability or a 100% win rate.
TradingView session concepts referenced in this script are based on TradingView’s official Pine Script session documentation.
Indicator
London Session Breakout - Joovier GemsLondon Session Breakout
London Session Breakout is a visual breakout indicator designed for traders who want a clean, mechanical way to track the pre-market London range on Nasdaq futures.
This indicator marks the 3:00 AM–9:00 AM New York time range, highlights the active trading window from 9:30 AM–11:00 AM, and plots breakout signals when price closes outside the London range.
The goal is simple: help traders visually identify when NQ breaks out of the London session range during the New York morning session.
How It Works
1. The indicator draws a box around the 3:00 AM–9:00 AM NY time session.
2. It marks the London session high and low.
3. The New York execution window from 9:30 AM–11:00 AM is highlighted on the chart.
4. A buy signal appears when a 5-minute candle closes above the London high.
5. A sell signal appears when a 5-minute candle closes below the London low.
6. Optional entry, stop loss, and take profit lines can be displayed automatically.
Trade Logic
This indicator is built around a simple breakout model:
* Long Signal: Candle closes above the 3:00 AM–9:00 AM range high.
* Short Signal: Candle closes below the 3:00 AM–9:00 AM range low.
* Entry: Breakout candle close.
* Stop Loss: 5 ticks beyond the breakout candle.
* Take Profit: 2R by default.
* Signals Only Appear: Between 9:30 AM and 11:00 AM New York time.
Features
* London range box
* London high and low levels
* New York execution window highlight
* Buy and sell breakout arrows
* Optional one-signal-per-day mode
* Optional entry, stop loss, and take profit lines
* Adjustable stop offset and take-profit R multiple
* Customizable colors, arrows, labels, and text size
* Alert conditions for long, short, or any breakout
Recommended Use
This indicator is intended for use on the NQ 5-minute chart with extended-hours data enabled.
It is best used as a visual backtesting and trade-planning tool. The indicator does not guarantee profitability and should be combined with proper risk management, market context, and your own testing.
Disclaimer
This script is for educational and informational purposes only. It is not financial advice. Trading futures involves risk, and past performance does not guarantee future results. Always backtest and forward-test any strategy before using it with real money. Indicator
SmartFlow Kill ZoneSmartFlow Kill Zone highlights the three major trading sessions (Tokyo, London, New York) and their corresponding ICT Kill Zones directly on your chart. Designed for intraday traders who use session-based and Smart Money Concepts (SMC) strategies, this indicator gives you instant visual clarity on when high-probability trading windows are active.
█ WHAT IT DOES
This indicator identifies and displays the three global forex sessions and three ICT Kill Zones using distinct background colors. It also tracks the High and Low of each session in real time and draws horizontal reference lines that update as the session progresses.
A built-in dashboard provides a quick overview of which sessions and Kill Zones are currently active, along with each session's range in pips.
█ HOW IT WORKS
Session and Kill Zone detection is based on time-of-day logic using the user-selected timezone (default: America/New_York):
Sessions:
- Tokyo: 19:00 – 04:00 ET
- London: 03:00 – 12:00 ET
- New York: 08:00 – 17:00 ET
Kill Zones (ICT):
- London Kill Zone: 02:00 – 05:00 ET
- New York Kill Zone: 07:00 – 10:00 ET
- Asian Kill Zone: 20:00 – 00:00 ET (off by default)
Session High/Low lines are drawn from the session's opening bar and updated on every new bar during the session. When a session closes, lines optionally extend to the right until the next session of the same type begins. Previous sessions' High/Low lines are preserved across multiple days (configurable via "Days to Display").
The dashboard table uses the last bar's data to show open/closed status, the session's current range, and whether any Kill Zone is active.
█ HOW TO USE
- Apply the indicator to any intraday chart (1m to 1h recommended).
- Use the background shading to quickly identify which session you are trading in.
- The brighter Kill Zone overlay tells you when the highest-probability reversal windows are active — this is where ICT traders look for optimal trade entries.
- Session High/Low lines act as key reference levels. Price often reacts at these levels as they represent session-based liquidity.
- The dashboard gives you a heads-up display so you never miss a Kill Zone activation.
█ FEATURES
- Three session backgrounds with independent on/off toggles
- Three ICT Kill Zone backgrounds with independent on/off toggles
- Real-time Session High/Low tracking with configurable line style and width
- High/Low labels that update live during the session
- "Extend Lines Right" option for lines to project forward until the next session
- Multi-day history (up to 30 days of past session H/L lines)
- Dashboard with session status, range (pips), and Kill Zone status
- Dashboard position and size are fully customizable
- 9 alert conditions (session open/close and Kill Zone activation)
- Full timezone support (10 major timezones)
- Works on any symbol and any intraday timeframe
█ SETTINGS
Sessions — Toggle visibility for Tokyo, London, and New York sessions.
Kill Zones — Toggle each ICT Kill Zone independently. Asian KZ is off by default.
Colors — Customize background colors for each session and Kill Zone.
Session High/Low — Toggle H/L lines and labels, set line width, style, and right extension.
Dashboard — Toggle, reposition, and resize the info panel.
Timezone — Select the timezone used for session calculations.
History — Set how many days of past session H/L lines to display (1–30).
█ NOTES
- This indicator does not generate buy or sell signals. It provides session structure and timing context to support your own trading strategy and decision-making.
- Kill Zone times are based on the ICT (Inner Circle Trader) framework. Different educators may define slightly different windows.
- For best results, use on timeframes of 1 hour or lower where session boundaries are clearly visible. Indicator
EdgeMatrix SessionsUnlike most session indicators that only mark static open or close levels, EdgeMatrix Sessions draws a live expanding range box for each session that updates bar by bar and remains as a permanent reference level after the session closes
EdgeMatrix Sessions draws real-time high and low range boxes for the four major global trading sessions directly on the chart. The sessions covered are Tokyo, London, New York, and Sydney.
Each session box begins drawing at the open of the session window and expands automatically bar by bar as price establishes new highs or lows within that session period. When the session closes, the box remains on the chart as a permanent reference level, giving traders a visual record of where price was accepted during each major market period.
Session boundary detection is handled using a UTC offset input, which allows the indicator to align session times accurately regardless of the trader's local timezone or broker server time. Each session has its own independent color input and can be toggled on or off individually. Session time ranges are fully adjustable for traders whose broker uses non-standard open and close times.
The indicator works on all asset classes including Futures, Forex, Crypto, and Indices on any timeframe.
How to use: Set the UTC offset to match your broker server time. Enable or disable each session with the toggle inputs. The boxes draw and expand automatically during active session hours and remain as static reference levels after each session closes. Indicator
Session Bias Relay Map [AGPro Series]Session Bias Relay Map
🧠 Core Idea
Did Asia, London, and New York pass the same bias forward, or did the next session reject the market narrative?
📌 Overview / What it does
Session Bias Relay Map is an intraday session-structure tool built to visualize how directional bias moves from one major trading session to the next.
The script tracks Asia, London, and New York session ranges, scores each session's directional bias, and classifies whether the active session confirms, conflicts with, or reverses the previous session's narrative.
It does not predict price direction, automate trades, or claim that a session handoff must continue. It is a structured visualization and decision-support map for session bias, market narrative, and intraday context.
🎯 Purpose & Design Philosophy
Many session tools draw boxes, highs, lows, or kill zones.
This script was built to answer a more contextual question:
Did the next major session accept the prior session's directional story, or did it break the handoff?
The design goal is to help traders read sessions as a relay of market intent instead of isolated time windows. It supports discretionary market reading, session review, and intraday structure analysis.
⚡ Why This Script Is Different
Most session indicators focus on time blocks, session highs, and session lows.
This script does NOT stop at drawing session boxes.
Instead, it evaluates how each session behaves relative to the prior session. It scores bias strength, detects handoff confirmation, identifies conflict, and highlights reversal pressure when the active session builds a strong opposite narrative.
⚙️ Methodology
1. Session Detection
The script tracks configurable Asia, London, and New York session windows using the chart symbol's exchange timezone.
2. Session Range Mapping
For each session, it records open, high, low, close, midpoint, bar count, and live range behavior.
3. Bias Scoring
Session bias is scored using body pressure, close location inside the session range, and optional relative volume confirmation.
4. Relay Evaluation
London is compared against the completed Asia bias.
New York is compared against the completed London bias.
5. Visual Output
The chart displays session boxes, midpoint rails, centered session labels, relay event labels, right-side tags, alerts, and a compact AG Pro decision panel.
🗺️ How to Read the Chart
Session Boxes = the active session range built from each configured time window.
Centered Labels = the session name, current bias, relay state, and quality score.
Midpoint Rails = the middle of each session range, useful for reading control and balance.
Relay Event Labels = confirmation, conflict, or reversal events when a later session responds to the prior session.
Right-Side Tags = the current relay state and active session bias.
Panel = summarizes active session, relay state, bias score, prior session, session quality scores, next context, and timeframe scope.
🚦 Signals & States
• RELAY CONFIRMED → the active session supports the previous session's directional bias.
• RELAY REVERSAL → the active session builds strong bias opposite to the previous session.
• BIAS CONFLICT → the active session does not clearly confirm the previous session.
• FIRST LEG → Asia is building the first session bias for the daily relay.
• WAIT HANDOFF → the active handoff does not yet have enough evidence.
• BULLISH → the session is closing with bullish range pressure.
• BEARISH → the session is closing with bearish range pressure.
• NEUTRAL → the session does not have enough directional pressure.
🔔 Alerts Logic
Alerts trigger when a major relay state appears.
• Session Bias Relay Confirmed → the active session confirmed the directional bias passed from the previous session.
• Session Bias Conflict → the active session failed to confirm the previous session and is showing conflict.
• Session Bias Reversal → the active session built strong bias opposite to the previous session.
Alerts are attention markers, not trade instructions.
🧩 Confluence Logic
The context becomes stronger when:
• The previous session has a clear directional bias
• The active session has enough bars to evaluate
• The active session bias score is above the confirmation threshold
• Price closes with clear range position
• Relative volume supports participation
• The relay label and panel state agree
If these elements do not align, the script avoids forcing a strong directional interpretation.
📊 When to Use
• Intraday session analysis
• Forex, crypto, index futures, and liquid stock index products
• Asia-to-London handoff review
• London-to-New-York handoff review
• Market narrative tracking
• Session range and bias studies
• 15m, 30m, 1H, and 2H charts
⚠️ When NOT to Use
• Daily, weekly, or monthly charts
• Very low-liquidity symbols
• Markets with irregular or meaningless session windows
• Extremely noisy conditions where session closes do not carry useful information
• Situations where a single session should not be over-interpreted
• Symbols where the chart exchange timezone does not match the intended session model
🎛️ Key Inputs
• Asia Session → defines the first session window used to build the initial bias.
• London Session → defines the second session window used to evaluate the Asia handoff.
• New York Session → defines the third session window used to evaluate the London handoff.
• Max Chart TF Minutes → limits the largest timeframe that should build the relay map.
• Bias Confirmation Threshold → controls how strong a session must be before it can confirm a relay.
• Conflict Threshold → controls when a session is treated as weak or conflicted.
• Minimum Handoff Bars → prevents early-session noise from printing premature relay labels.
• Use Volume Confirmation → adds relative volume pressure to the bias score.
• Show Session Boxes → controls the main visual range boxes.
• Show Relay Event Labels → controls confirmation, conflict, and reversal labels.
• Label Font Size → controls chart label and tag text size.
• Panel Font Size → controls panel text size.
🖥️ Interface & Visual Design
The visual hierarchy is built around the session relay story.
Session boxes define the time windows.
Centered labels make each session readable without hunting through the chart.
Relay labels highlight the important handoff moments.
Right-side tags keep the current state visible.
The AG Pro panel summarizes the active session context in a clean, compact format.
🧪 Practical Usage Workflow
1. Choose session windows that match the market being studied.
2. Let Asia build the first bias leg.
3. Watch whether London confirms, conflicts with, or reverses Asia.
4. Watch whether New York confirms, conflicts with, or reverses London.
5. Use the panel to check relay state, active bias, quality score, and timeframe scope.
6. Interpret the result inside broader market structure, liquidity, and volatility context.
🔍 Interpretation Guidelines
A relay confirmation does not guarantee continuation. It means the active session is supporting the prior session's directional bias according to the script's rule set.
A relay reversal does not guarantee a full trend reversal. It means the active session is building strong opposite pressure relative to the previous session.
A bias conflict is not a failure. It is useful information that the market narrative is not clean.
The best use is contextual: combine the relay state with support, resistance, liquidity, volume, and higher-timeframe structure.
🚫 What This Script Is NOT
This script is not a prediction engine.
It is not financial advice.
It is not an auto-trading system.
It does not provide guaranteed entry or exit signals.
It is not a generic session box indicator.
It is not a kill-zone strategy.
⚠️ Limitations & Transparency
Session settings matter. Poorly selected session windows can produce weak or misleading context.
Timeframe differences can affect how session handoffs appear.
Low-liquidity markets can distort bias scores.
Markets with irregular trading hours may need custom session inputs.
Relative volume can help, but it does not guarantee better interpretation in every market.
🧠 Market Context Notes
Session behavior is often shaped by liquidity, regional participation, volatility expansion, and macro timing.
The same relay state can mean different things depending on whether the market is trending, ranging, or reacting to news.
The script is strongest when used as a narrative map, not as a standalone decision machine.
🧾 Use Case Examples
• If Asia builds a bullish range and London also closes with strong bullish pressure, the relay may show confirmation.
• If Asia builds bullish pressure but London quickly forms strong bearish pressure, the relay may show reversal.
• If London begins with weak movement and no clear range pressure, the relay may show conflict or wait for more evidence.
🧱 System Philosophy
Session Bias Relay Map is part of the AGPro Series approach to decision-support tools:
clear structure, premium chart readability, honest interpretation, and no promise of certainty.
The goal is to help traders see market context faster without turning analysis into signal spam.
🔐 Non-Promise Statement
No script can know the future.
No session handoff is guaranteed.
No signal should be interpreted without broader market context.
📉 Risk Disclosure
Trading involves risk.
Markets can move unpredictably.
This script is for educational and analytical purposes only.
It does not provide financial advice or guaranteed trading outcomes.
Users remain responsible for their own decisions.
📚 Educational Note
Use this script to study how market participation changes across sessions.
The value is not only in the label. The value is in learning how the session narrative develops, confirms, conflicts, or reverses over time.
Indicator
Indicator
Indicator
ALN Sessions [NQ Stats x CantoLab]A statistical tool for NQ intraday traders built around research from NQ Stats (NQStats on twitter / nqstats.com ). Credit to NQ Stats for the original concept and data — published here as an open source indicator with permission.
Introduction
This indicator visualizes Asia and London session ranges on NQ (NASDAQ futures), then overlays statistically-derived probability levels showing how likely price is to sweep each session's high or low — based on historical pattern data compiled by NQ Stats.
How to Read the Probability Numbers
When London session closes, two horizontal lines appear — one above (London High) and one below (London Low) — each labeled with a percentage like 81.1% or 74.9%.
These numbers answer: "Historically, how often does price return to sweep this level after London closes?"
For example, if you see 81.1% on the high line, it means: in roughly 8 out of 10 historical sessions matching this pattern, price eventually traded back up to or through the London High
What happens when a level is hit?
The label updates to show in blue — confirming that level was reached
The other line's probability updates to a new conditional probability, e.g. 46% , shown in brackets
This delta tells you how the odds of sweeping the second level changed now that the first was reached
The Four Patterns (Asia vs London relationship)
The probabilities change depending on how London's range relates to Asia's range that day. The indicator detects four patterns automatically:
London Engulfs Asia — London trades both above AND below Asia's range. The most expansive session structure.
Asia Engulfs London — Asia's range fully contains London's range. London consolidates inside the prior overnight range.
London High Break — London breaks only above Asia's high, leaving Asia's low intact.
London Low Break — London breaks only below Asia's low, leaving Asia's high intact.
Each pattern has its own set of historical probabilities, so the percentages you see are always contextual to that day's Asia/London relationship — not a fixed number.
Settings
Asia Session — color, session time window, and label text
London Session — color, session time window, and label text
Label Size — Tiny / Small / Normal / Large
Border — toggle, style (Solid/Dashed/Dotted), and width for session boxes
Probability Lines — toggle, Auto color or manual color pick, style (Solid/Dashed/Dotted), and width
Daily Dividers — toggle, color, style (Solid/Dashed/Dotted), and width
Notes
Built for NQ Futures. Behaviour on other instruments is untested
All times are New York time
Probability data is derived from 10 years of NQ historical data by nqstats.com
This indicator does not provide financial advice or a complete strategy. You are responsible for how you build around and execute on this data
⚠️ Important
This is a statistical study indicator. It does not guarantee that the London high or low will be hit. Over a large sample, this is the expected behaviour based on 10 years of NQ data. It is best combined with other confluences to confirm direction — this indicator alone is not a strategy.
Indicator
Asian Range Liquidity Map [AGPro Series]Asian Range Liquidity Map
🔹 OVERVIEW
Asian Range Liquidity Map is a precision tool for ICT and smart-money traders who focus on the London Open liquidity sweep. The indicator maps the Asian session high/low liquidity pool, tracks which side gets taken on the London kill-zone, and keeps a rolling 60-session record of post-sweep reactions. The engine calculates live Reversal / Continuation / Mixed probabilities for both bull and bear sweeps and displays everything in a compact info panel without cluttering the chart.
Whether you trade Turtle Soup setups, session-based liquidity grabs, or simply want clean Asian range context, this indicator gives you the structural read most traders spend months building manually.
🔹 UNIQUE EDGE
This is not another session-box plotter. Three design choices separate it from generic Asian range indicators:
1. ATR-Normalized Quality Filter — the range width is measured against the Daily ATR, not the chart timeframe. Sessions that are abnormally narrow (illiquid) or abnormally wide (news-driven noise) are filtered out of the statistics engine automatically. Only clean, tradable ranges count.
2. Live Historical Statistics Engine — every past sweep in the 60-session rolling window is classified as Reversal, Continuation, or Mixed using close-based validation. When a new sweep fires, a state label immediately shows the historical bias: "Bull Sweep -> Historical Reversal 73% (n=26)". You see the context the moment price reacts.
3. Three-Tier Classification — most tools treat sweep reactions as a binary outcome. This engine separates clean reversals, clean continuations, and indecisive mixed responses, giving a more honest statistical picture. The Mixed bucket is visible in the panel so the trader always knows how confident the signal actually is.
🔹 METHODOLOGY
1. Session Tracking — the Asian window is tracked using pure UTC hour/minute math (default 00:00-08:00 UTC), fully independent of chart timezone. Start and end hours are configurable.
2. Range Validity — on session close, the range width is compared to the Daily ATR. If the ratio falls outside the user-defined band (default 0.3-2.0 x dATR), the session is marked Filtered Out and excluded from statistics.
3. Sweep Detection — after the session closes, the engine watches a configurable post-open window (default 6 hours) for the first break of the Asian High or Low. Only the first sweep per session is recorded, which keeps the sample clean.
4. Reaction Classification — after the reaction window (default 10 bars), the engine evaluates post-sweep closes:
- Reversal: price closed through the opposite side by at least Reversal Threshold x Range
- Continuation: price sustained past the sweep level with pullback under Continuation Threshold x Range
- Mixed: neither condition was met
5. Rolling Sample — the most recent 60 classified sweeps feed the Bull and Bear statistics independently. Default is 60, configurable from 20 to 100.
🔹 SIGNALS AND ON-CHART ELEMENTS
- Asian Range Box: dotted amber rectangle during the session, solidifies on close if the range passes the ATR filter. Filtered sessions fade to near-invisible.
- High and Low Dotted Extensions: projected right from each validated session, showing the liquidity levels the market will target.
- Sweep State Label: appears on the bar that first breaks the range. Color-coded green for bull sweeps, pink for bear sweeps, with the historical bias and sample size baked in.
- Sweep Line: thick horizontal line at the taken level, drawn forward across the projection zone.
- Projection Zone: rectangular post-sweep forecast box where follow-through (or rejection) typically plays out.
- Multi-Day Overlay: up to the last 5 validated Asian ranges rendered with fade hierarchy (oldest most faded, newest most visible).
- Three alerts are included: Bull Sweep Detected, Bear Sweep Detected, and London Open with Valid Asian Range.
🔹 KEY INPUTS
Session Settings:
- Asian Session Start/End Hour (UTC)
- Sweep Detection Window (hours after London Open)
Quality Filter:
- Use ATR filter (on/off)
- Min and Max Range Width (x Daily ATR)
- ATR Length
Historical Stats Engine:
- Sample Size (20-100 sessions)
- Reaction Window (bars after sweep)
- Reversal Threshold (x Range)
- Continuation Threshold (x Range)
Multi-Day Overlay:
- Show historical sessions (on/off)
- Days to show and fade intensity
Post-Sweep Projection:
- Show projection zone (on/off)
- Projection length in bars
Visual Style:
- Label Font Size (independent from panel)
- Show sweep state label (on/off)
Info Panel:
- Show panel, location, theme (Dark/Light)
- Panel Font Size (independent from labels)
🔹 HOW TO USE
Best fit: intraday timeframes from 1m to 60m. The 15m chart is the intended sweet spot and what the defaults are tuned around. The script auto-disables on 4H and higher with a clear on-chart notice.
Typical workflow:
1. Confirm Range Status shows Valid after the Asian session closes. If Filtered Out, stand aside that day.
2. Wait for the London Sweep Window state and watch the Asian High/Low levels.
3. When a sweep fires, read the state label. A high Reversal probability near a major higher-timeframe level often flags a Turtle Soup opportunity. A high Continuation probability suggests fading is risky and trend-aligned entries are preferred.
4. Use the projection zone as a post-sweep attention area, not a target in itself.
5. Cross-check with your own higher-timeframe bias, volume, and structure before committing.
🔹 LIMITATIONS AND TRANSPARENCY
- This is a context tool, not a strategy. No buy/sell signals are generated and no backtest or performance claim is made.
- The historical percentages shown are descriptive statistics of recent price behavior in the sample window. They describe what has happened, not what will happen. A reading like 80% Reversal means four out of five prior sweeps in the sample reversed; the fifth did not.
- On strongly trending or low-volatility instruments, distributions can skew heavily to one category. For example, on a tight range-bound market a liquidity sweep almost always reverts, producing very high Reversal readings. This is a feature of the data, not a bug. If a distribution looks extreme, tighten the Reversal Threshold and shorten the Reaction Window for a stricter definition, or widen them for a looser one.
- Request.security is used to pull Daily ATR and is evaluated without lookahead; no future data is used.
- First-run sample size will be small until the chart has enough history to fill 60 sessions. Expect the panel to show progress like 18 / 60 until the buffer fills.
🔹 RISK DISCLOSURE
This indicator is a research and analysis tool for educational purposes. It does not constitute financial advice, a recommendation, or a solicitation to buy or sell any asset. Past behavior of liquidity sweeps does not guarantee future outcomes. Trading carries substantial risk of loss. Always perform your own analysis, apply risk management that suits your account, and consult a qualified professional before making financial decisions. Indicator
Session Reaction Map [AGPro Series]Session Reaction Map
🔷 OVERVIEW
Session Reaction Map is a premium intraday study that maps how price reacts to the most important daily and weekly reference levels right at the opens of the Asia, London and New York sessions. Each session open is evaluated inside a fixed measurement window, and the resulting reaction is broken down into four dimensions: dominant move, close follow-through, wick rejection and counter-move penalty. The output is a single 0-100 reaction score that is then translated into tier-coded labels, premium reaction zones, an active reference band and a compact status panel, so you can instantly read what happened at each session open without scrolling through candles.
The indicator is designed for discretionary traders, systematic traders, SMC and price action practitioners who want a clean, consistent and quantitative way to read session open behaviour around PDH, PDL, PDM, Daily Open and Weekly Open. Reactions are drawn as directional zones (bull zones above the reference and bear zones below), with up or down pointing labels centered on the reaction, so orientation is always unambiguous.
🧭 UNIQUE EDGE
Most session open tools only mark time windows or highlight levels. Session Reaction Map goes further and quantifies the quality of the reaction itself. Four independent dimensions are measured against a fixed ATR-normalized baseline, and the final score determines not only whether a label is shown but also how prominent it is. Elite scores (80+) get the strongest visuals; strong scores (70-79) get a slightly softer treatment; watch scores (55-69) are coded as caution; anything below 55 is filtered out by default.
This separation between detection (a session open near a reference) and evaluation (the reaction quality score) is the core edge. It lets you focus only on the best intraday reactions and discard noise automatically, while still being able to audit every component by adjusting the ATR length, touch tolerance, evaluation window and score thresholds.
⚙️ METHODOLOGY
Session detection uses the chosen timezone and three session windows (Asia, London, New York), each with its own editable open range. When a session open occurs, the script checks whether the open price is within an ATR based touch tolerance of any enabled reference level (Previous Day High, Previous Day Low, Previous Day Mid, Daily Open or Weekly Open). If so, a reaction window is engaged on that bar and tracked for a configurable number of bars.
During the reaction window, the live zone, reference band and dashed reference line are updated in real time. When the window completes, the final score is computed as:
• Dominant move score (up to 45 points) - scaled against 1.20 x ATR
• Close follow-through score (up to 30 points) - scaled against 0.90 x ATR
• Wick rejection score (up to 15 points) - scaled against 0.50 x ATR
• Counter-move penalty (up to -20 points) - scaled against 1.00 x ATR
The sum is clamped into the 0-100 range and mapped into four tiers: Elite, Strong, Watch and Weak. The dominant direction of the reaction (up or down) is determined by comparing the upside excursion from the reference to the downside excursion from the reference during the window.
🎯 SIGNALS AND VISUALS
• Reaction zones - rectangular areas connecting the reference level with the reaction extreme, tier-coded by score and bias
• Active reference band - a thin accent band around the current reference level during a live reaction window
• Dashed reference line - marks the exact reference price while the reaction is being measured
• Tier-coded labels - up-pointing labels below bullish reactions and down-pointing labels above bearish reactions, centered on the reaction window
• Session dots - small colored markers that optionally display only on valid events, keeping the chart clean
• Active measurement highlight - an ultra-soft background shade on bars inside a live reaction window
Labels use a ring buffer overlap check, so dense multi-session conditions do not pile labels on top of each other. When two labels would visually conflict, the higher-scored reaction wins.
🛠️ KEY INPUTS
Sessions - enable/disable and edit Asia, London and New York session windows, each with its own color and timezone.
Reference Levels - individually toggle PDH, PDL, PDM, Daily Open and Weekly Open.
Reaction Logic - ATR length, touch tolerance in ATR, evaluation bars, label score filter, minimum label score, overlap reduction (bars and vertical ATR gap).
Visuals - show/hide reference levels, session dots, dots only on valid events, reaction zones, minimum score for zones, zone transparency and extension, live reaction zone, active reference band with its ATR size and transparency, active measurement highlight, level width, label size, label offset in ATR and label background transparency.
Panel - show/hide, position (six anchor points), Dark or Light theme, font size, optional guide row.
All numerical inputs carry professional English tooltips explaining their role, so the script can be tuned for any symbol, timeframe and trading style.
📘 HOW TO USE
1. Apply the script on an intraday timeframe. It is designed for intraday use and will stay passive on daily/higher timeframes.
2. Recommended starting timeframe is 4H for swing intraday context, and 1H for tactical intraday work. Lower timeframes (15m, 30m) work too but may produce dense output.
3. Start with the default settings. Observe which sessions and which reference levels generate the most Elite and Strong reactions on your symbol.
4. Use the panel to monitor the current state: last session, last reference, bias, score, tier, label filter, zone filter and the active reaction status.
5. Treat Elite (80+) and Strong (70-79) reactions as the main signals. Watch tier is informative and Weak tier is generally discarded.
6. Align with your own confluence: higher timeframe bias, structure, orderflow, or whatever your primary framework is. The script does not issue buy or sell calls - it scores reactions, and you decide.
⚠️ LIMITATIONS AND TRANSPARENCY
• This is not a strategy and does not place orders. No backtest statistics are implied.
• Reaction scores are computed after the evaluation window completes, so they are not repainting but are confirmed with a lag equal to the evaluation window size.
• The live reaction zone updates during the window and is finalized when the window closes.
• Session behavior varies significantly by symbol (crypto vs FX vs equities) and by volatility regime. Inputs should be tuned per symbol.
• Daily and Weekly references use standard request.security with barmerge.lookahead_off to avoid look-ahead bias.
• The script is not a forecasting tool. It is a post-event quantification of how price has just reacted to a known reference level.
🛡️ RISK DISCLOSURE
Trading involves substantial risk. Past reactions, patterns, zones or scores do not guarantee future performance. This script is provided for educational and analytical purposes only and is not financial advice. Always combine any tool with your own research, a defined risk plan and proper position sizing. You are solely responsible for your trading decisions. Indicator
Judas Swing Detector [AGPro Series]Judas Swing Detector
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
OVERVIEW
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
The Judas Swing is a well-known intraday pattern in ICT (Inner Circle Trader)
methodology describing how price often makes a deceptive initial move at the
London or New York session open — pulling in participants in one direction —
before reversing to reveal the session's true directional bias.
Judas Swing Detector systematically identifies, visualizes, and tracks this
pattern across every London and New York session open. It shades the trap
zone, flags the reversal bar, highlights the true-direction bias, and maintains
a rolling 20-session performance log so users can assess how consistently the
pattern resolves on their chosen symbol and timeframe.
IMPORTANT — Timeframe requirement: This indicator is designed for intraday
charts of 1 hour or lower (1m, 5m, 15m, 30m, 1h). Session windows anchor the
entire logic, and a 1-hour Judas window cannot be resolved on 4-hour or higher
charts. The panel always shows an "Optimal TF: 1m - 1h" footer, and the TF
status row turns yellow with "use <=1h" if the current chart exceeds this
range.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
UNIQUE EDGE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Unlike generic session-open or breakout indicators, Judas Swing Detector is
built around a defined four-state lifecycle (Pending → Active → Forming →
Confirmed / Failed) with ATR-normalized thresholds, so detection remains
stable across different volatility regimes and asset classes.
Three design choices make it distinct:
1. Independent two-way extremum tracking inside the Judas window — both the
maximum upward and maximum downward excursion are recorded, and the larger
of the two is declared the fake move when the window closes. This removes
ambiguity in choppy openings.
2. Separate fake-move and reversal thresholds. The initial push must exceed
a minimum ATR-scaled size to qualify, and the reversal must travel a second
ATR-scaled distance beyond the session open — filtering out shallow round
trips that would otherwise inflate the signal count.
3. Rolling 20-session statistics panel reporting success rate, average fake
distance, and directional bias, giving discretionary traders an objective
view of how the pattern is behaving on their instrument before they act on
it.
4. Support/resistance-style invalidation zone drawn at the fake-move extremum
after confirmation. This gives a clear visual anchor: if price later
re-enters this zone from the opposite side during the session, the Judas
read is considered broken. The zone is a reference, not an automatic
signal.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
METHODOLOGY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Step 1 — Session anchoring
At the first bar of the configured London or New York window the script
records the session open price, resets the two-way extremum trackers, and
transitions to the Active state.
Step 2 — Fake-move accumulation
During the window the script tracks both the maximum high and minimum low
relative to the session open. Neither is committed as the fake move until the
window closes.
Step 3 — Window-close evaluation
When the window ends the larger excursion (up vs down) becomes the fake
direction. If its size reaches the user-defined ATR multiple it qualifies and
the script transitions to the Forming state; otherwise it resets to idle.
Step 4 — Reversal confirmation
In the Forming state the script waits for price to cross the session open in
the opposite direction of the fake move and travel at least the configured
ATR-scaled distance beyond it. When that happens the swing is Confirmed and
the true direction is drawn on the chart. If the reversal window expires
without confirmation the swing is recorded as Failed.
Step 5 — History log
Every confirmed and failed outcome is appended to a rolling 20-session log
used by the statistics panel.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
SIGNALS & ALERTS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
On-chart visuals:
• Dashed vertical line at session start (accent color)
• "LON" or "NY" label at the session anchor bar (Balanced / Detailed only)
• Shaded fake-move box from session open to fake extremum, colored opposite
to the true direction (a bearish trap is shaded in the bear tone because
the true direction is down — and vice versa)
• Optional "Fake" distance label at the extremum (Detailed density only)
• Reversal marker "X UP" or "X DOWN" at the confirmation bar, offset
from the candles for readability
• Horizontal support/resistance-style invalidation zone around the fake
extremum, extending 40 bars to the right — a visual reference for where
the Judas read would break down if price re-enters the zone
Alert conditions (toggle individually in settings):
• Judas Swing Forming — fake move has qualified, waiting for reversal
• Judas Swing Confirmed — reversal threshold crossed, true direction known
• Judas Swing Failed — reversal window expired without confirmation
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
KEY INPUTS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Session Windows
• Track London Open — toggle London session monitoring
• London Judas Window (NY time) — session string, default 0200-0300
• Track New York Open — toggle NY session monitoring
• NY Judas Window (NY time) — session string, default 0930-1030
• Session Timezone — timezone used to interpret the windows
• Reversal Window (minutes) — maximum time after window close in which a
valid reversal can still be recorded
Detection Logic
• Min Fake-Move Size (ATR mult) — minimum excursion required to qualify
• Reversal Confirmation (ATR mult) — distance beyond session open needed
to confirm the reversal
• ATR Length — lookback for threshold scaling
Visuals
• Show Session Start Line, Show Fake-Move Zone, Show Reversal Marker,
Show Invalidation Zone — individual visual toggles
• Label Density — Minimal / Balanced / Detailed
• Font Size — tiny / small / normal / large (applies to labels and panel)
• Theme — Dark / Light (panel only, chart candles unaffected)
Panel
• Show Info Panel — master toggle
• Panel Location — 6 chart positions
• Always displays: current session, state, true direction, fake distance,
rolling 20-session statistics (success rate, avg distance, bull/bear
bias), current TF status, and a footer reminding the optimal timeframe
range
Alerts — three individual toggles (Forming / Confirmed / Failed)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
HOW TO USE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Supported timeframes: 1m, 5m, 15m, 30m, 1h. These resolve a session's early
structure cleanly while keeping enough bars inside each Judas window for the
extremum tracker to work with. Recommended default: 15m or 1h.
Not supported: 4h, 1D, 1W. On these timeframes a single bar exceeds the
session window, so nothing is detected. The panel will show a yellow "use
<=1h" hint if you accidentally switch to one of these.
Recommended instruments: FX majors (EURUSD, GBPUSD, USDJPY), index futures
(NQ, ES), liquid crypto (BTC, ETH). The ATR-normalized thresholds keep the
logic portable across these asset classes.
Workflow suggestion:
1. Apply the indicator and let it observe several sessions so the panel
populates a meaningful sample.
2. Review the 20-session success rate on your specific symbol and timeframe.
This is not a forecast — it is a descriptive statistic of how the pattern
has resolved in recent history on that chart.
3. Use the Forming alert as a heads-up, and the Confirmed alert as the main
event. The true-direction arrow marks the bias of the remaining session,
not a trade entry or exit.
4. Combine with your own structural context — higher timeframe bias, key
levels, liquidity pools — before acting on any signal.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
LIMITATIONS & TRANSPARENCY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
• Not a strategy. This is a discretionary analysis tool; it neither places
orders nor implies any specific trade setup.
• Intraday timeframes only. The logic requires 1h or lower charts to resolve
the session windows. On 4h, 1D or higher the indicator will not detect
anything and the panel will show a "use <=1h" notice.
• No forecasting. Displayed statistics describe past behavior on the current
chart only and do not imply future performance.
• Pattern-dependent. When price opens and trends cleanly in one direction
without a fake move, the pattern legitimately will not trigger. Low
signal count on such sessions is expected behavior, not a malfunction.
• Session boundary sensitivity. Results depend on the configured session
windows and timezone. Outside the major FX and equities session hours the
ICT framing may not translate cleanly.
• Extreme-volatility sessions. During very large gaps or news spikes the ATR
thresholds can be dominated by a single bar; users should review the
defaults in those conditions.
• Symbol coverage. Pip conversion handles forex and JPY pairs explicitly and
falls back to tick-based sizing for other asset types. Values are intended
as relative magnitudes, not broker-specific pip quotes.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
RISK DISCLOSURE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
This indicator is provided for educational and analytical purposes only. It
does not constitute financial advice, a recommendation, or a solicitation to
buy or sell any instrument. Trading involves substantial risk of loss; past
pattern behavior is not indicative of future results. Users are responsible
for their own trading decisions and for verifying that any signal aligns with
their own methodology and risk management.
The source code is published under the Mozilla Public License 2.0. Feedback
and constructive suggestions are welcome. Indicator
ALN Sessions NQ 8am Prediction Model v3ALN Sessions — NQ Structural Framework
A structural analysis tool for NQ E-Mini Futures based on the Asia / London / New York overnight session relationships documented at nqstats.com.
All probability data is sourced directly from the 10-year study published at nqstats.com (2016–2026, n = 2,542 sessions). Full methodology and pattern breakdown available at: nqstats.com
What it does
At the 08:00 ET bar close (London session end), the indicator classifies the overnight structure into one of four patterns based on how the London range relates to the Asia range:
P1 - London Engulfs Asia (22% of sessions) — London expands beyond Asia on both sides. Symmetric two-way volatility into NY. No directional edge.
P2 - Asia Engulfs London (6.9%) — London compresses inside Asia. Strongest setup — NY broke at least one level in every session over 10 years.
P3 - Partial Engulf Up (41%) — London broke the Asia high but held the Asia low. Bullish overnight lean. High breaks in 80.8% of NY sessions.
P4 - Partial Engulf Down (30.2%) — London broke the Asia low but held the Asia high. Bearish overnight lean. Low breaks in 75% of NY sessions.
Features
Session boxes for Asia, London, and optional NY
London and Asia high/low levels extended into the NY session
Break probability labels on London Hi/Lo at the NY open
Previous day high/low lines with % distance
Live break detection labels when London levels are crossed
Conditional first-break edge display for P3 and P4 (the key edge degrades ~30pp if the wrong side breaks first)
Stats dashboard table with dark/light mode
Full customization — colors, label sizes, label placement, line styles, table position
Credit
Pattern definitions, session times, and all probability statistics are the original research of nqstats.com. This indicator is a visual implementation of that framework. Please visit nqstats.com to understand the full methodology before using this tool in a trading context.
This indicator is for educational and informational purposes only. Past probabilities do not guarantee future results. Indicator
ICT Killzones & Pivots [TFO] - Traditional Chinese VersionICT 殺戮區與樞紐點 — 繁體中文版
ICT Killzones & Pivots — Traditional Chinese Edition
📌 概述 | Overview
本指標為廣受交易者使用的「ICT Killzones & Pivots 」之繁體中文本地化版本，完整保留原版所有功能，並將全部介面文字、設定選單、標籤與警報訊息翻譯為繁體中文，大幅降低中文使用者的操作門檻。
This is a Traditional Chinese localization of the well-known "ICT Killzones & Pivots " indicator. All original functionalities are fully preserved, with every interface element — including settings panels, labels, and alert messages — translated into Traditional Chinese to improve accessibility for Mandarin-speaking traders.
🕐 殺戮區（Killzones）| Session Killzones
根據 ICT（Inner Circle Trader）概念，機構資金最活躍的時段稱為「殺戮區」。本指標預設標記以下五個關鍵時段（以紐約時間為基準）：
Based on ICT (Inner Circle Trader) concepts, the periods of highest institutional activity are known as "Killzones." The following five key sessions are marked by default (New York time):
時段 Session時間 Time (ET)🔵 亞洲盤 Asia20:00 – 00:00🔴 倫敦盤 London02:00 – 05:00🟢 紐約早盤 NY AM09:30 – 11:00🟡 紐約午休 NY Lunch12:00 – 13:00🟣 紐約下午盤 NY PM13:30 – 16:00
每個時段皆可個別啟用／停用，並自訂名稱與顏色。
Each session can be individually toggled, renamed, and color-customized.
📐 核心功能 | Core Features
殺戮區方塊 | Session Boxes
以半透明色塊標示各殺戮區範圍，清晰呈現每個時段的高低點震盪區間。
Translucent boxes highlight each killzone's high-to-low range, providing a clear visual of intraday price structure.
樞紐點線 | Pivot Lines
自動標記每個殺戮區結束後的最高點與最低點，並在未被突破前持續延伸，協助識別關鍵支撐與壓力位。
Automatically marks the high and low of each completed killzone session. Lines extend until the level is mitigated, helping identify key support and resistance.
中間點 | Midpoint Lines
可選擇顯示每個殺戮區的50%均衡價位，常作為潛在回撤目標。
An optional display of the 50% equilibrium level within each killzone, commonly used as a retracement target.
振幅統計表 | Range Table
即時顯示各殺戮區的當前振幅與歷史平均振幅，協助評估當日市場波動性。
A real-time table displaying the current and historical average range of each killzone, useful for assessing daily market volatility.
日／週／月開盤線與高低點 | D/W/M Open & High/Low Lines
標記日、週、月級別的開盤價、前高與前低，提供多時間框架的重要參考價位。
Marks the open price and prior high/low for daily, weekly, and monthly timeframes as key multi-timeframe reference levels.
開盤價格線 | Custom Opening Price Lines
最多支援8條自訂時間的水平開盤線，可自行設定任意時間點（如真實日開盤00:00、倫敦開盤等）。
Up to 8 custom horizontal open price lines, configurable for any time (e.g., True Day Open at 00:00, London open, etc.).
星期標籤 | Day-of-Week Labels
在圖表底部或頂部自動顯示星期幾標籤，輔助辨識每日結構。
Automatically displays day-of-week labels at the top or bottom of the chart to assist with daily structural analysis.
時間戳記線 | Timestamp Vertical Lines
最多可設定4條自訂垂直時間線，標記任意重要時間節點（如經濟數據公布時間、特定開盤時間等）。
Up to 4 custom vertical timestamp lines to mark important time events such as economic releases or specific session opens.
突破警報 | Break Alerts
當價格突破殺戮區樞紐高低點，或日／週／月高低點時，自動觸發 TradingView 警報通知。
Automatically triggers TradingView alerts when price breaks through killzone pivot levels or D/W/M high/low levels.
⚙️ 主要設定 | Key Settings
繪圖保留天數：控制圖表上各類繪圖的最大顯示筆數
時間框架上限：超過指定時間框架後自動隱藏所有繪圖
時區：支援全球主要時區，預設為紐約時間
繪圖截止時間：可設定樞紐線與開盤線的自動停止延伸時間
樞紐延伸模式：「直到被突破」或「突破後繼續」兩種模式可選
Session Drawing Limit: Controls the maximum number of drawings retained on the chart
Timeframe Limit: Automatically hides all drawings above the specified timeframe
Timezone: Supports all major global timezones, defaulting to New York (ET)
Drawing Cutoff Time: Optionally stops pivot and open lines from extending at a set time
Pivot Extension Mode: Choose between "Until Mitigated" or "Past Mitigation"
🌐 本地化說明 | Localization Notes
本版本為原作者 @tradeforopp 所著「ICT Killzones & Pivots 」之繁體中文翻譯版，依據 Mozilla Public License 2.0 授權發佈。所有交易邏輯、核心演算法與功能設計之著作權均歸屬於原作者。本版本僅對使用者介面文字進行在地化處理，未更動任何核心程式邏輯。
This is a Traditional Chinese translation of "ICT Killzones & Pivots " originally authored by @tradeforopp, published under the Mozilla Public License 2.0. All trading logic, core algorithms, and functional design remain the intellectual property of the original author. This version only localizes the user interface text without modifying any core logic.
⚠️ 免責聲明 | Disclaimer
本指標僅供技術分析參考用途，不構成任何投資建議。交易涉及風險，請依據個人風險承受能力審慎決策。
This indicator is provided for technical analysis reference purposes only and does not constitute investment advice. Trading involves risk; please make decisions according to your own risk tolerance.
原始腳本 Original Script：ICT Killzones & Pivots by @tradeforopp
授權 License：Mozilla Public License 2.0 Indicator
Session Levels - Asia, London, NY, Premarket & Prior DayWhat it shows
session highs/lows for Asia, London, premarket, and the NY session during the RTH window; midnight open; NY RTH open and session close; optional NDOG 25% / 50% / 75% vs prior RTH close.
Prior day: completed RTH open, high, low, and close from the last RTH session, plus prior calendar day 24h high/low.
Untouched liquidity levels: optional highlight (color/line width) until the first qualifying wick/body intersection with the level (see inputs).
History: optional list of untouched levels from earlier days (subject to TradingView line/label limits).
How to use
Set timezone and session strings to match your instrument (default: America/New_York). Enable or disable level groups and adjust colors under Levels and Colors.
Use "Untouched liquidity" to emphasize levels that have not yet been traded through per the script rules.
If you hit drawing limits, lower "Max untouched historical levels" or turn off historical untouched levels.
Limitations
Drawing count is capped by max_lines_count and max_labels_count. Very long history may require reducing stored historical levels or zooming to a shorter range.
Disclaimer
For chart analysis and education only. Past or hypothetical behavior does not guarantee future results. Not financial advice. Indicator
Indicator
Trading Sessions Suite [BackQuant]Trading Sessions Suite
Overview
Trading Sessions Suite is a full intraday structure framework built around market sessions, kill zones, and session-specific order flow . It transforms the trading day into a sequence of structured regimes, allowing you to track how liquidity, volatility, and positioning evolve across Asia, London, and New York.
Instead of treating price as a continuous stream, this indicator segments the market into time-based auction phases , each with its own:
Range (high and low)
VWAP (fair value)
Open (reference anchor)
Equilibrium (midpoint)
Momentum (session oscillator)
It also overlays kill zones , highlighting the exact windows where volatility and participation tend to expand.
Example of kill zones in action:
Example combining RSI-style oscillator + VWAP structure:
This tool is designed for traders who want to understand how intraday structure builds, shifts, and resolves .
---
Core Philosophy
Markets are not random throughout the day. Liquidity, volatility, and institutional participation are time-dependent .
Each session has distinct characteristics:
Asia → accumulation, compression, range-building
London → expansion, breakout, liquidity grabs
New York → continuation, distribution, reversal potential
Rather than using static indicators, this script builds a dynamic framework tied to these time regimes .
---
Session Engine
The indicator tracks three primary sessions:
Asia Session
London Session
New York Session
Each session is defined by a configurable time window and processed as an independent structure.
Internally, each session maintains a full state:
Session high and low
Session open
Rolling VWAP
Start index (session start)
Drawn objects (box, lines, labels)
Oscillator data (if enabled)
This allows each session to behave like a self-contained market environment .
---
Session Boxes (Auction Structure)
Each session is visualized as a box:
Top = session high
Bottom = session low
Width = duration of the session
This gives you an immediate view of:
Range expansion vs compression
Relative volatility between sessions
Where price is positioned within each session
Interpretation:
Tight box → compression, buildup
Wide box → expansion, active participation
Overlapping boxes → consolidation across sessions
---
Session VWAP (Fair Value per Session)
Each session has its own VWAP:
VWAP = volume-weighted average price within that session only
This is critical because:
VWAP resets every session
Reflects session-specific positioning
Acts as a dynamic equilibrium level
Interpretation:
Price above VWAP → bullish control for that session
Price below VWAP → bearish control
Reversion to VWAP → mean reversion inside session
Unlike standard VWAP, this gives you multiple fair value anchors per day .
---
Session Open & Midline (Key References)
Each session also tracks:
Open Line → where the session started
Midline → (high + low) / 2
These act as:
Bias indicators (above/below open)
Equilibrium zones (midline)
Reaction levels
Typical behavior:
Holding above open → trend continuation
Crossing midline → shift in control
Rejecting midline → continuation signal
---
Range Extension (Forward Liquidity Levels)
When a session closes, its high and low can be extended forward.
These extensions act as:
Future support/resistance
Liquidity targets
Breakout validation zones
Mechanically:
High and low are projected into the next session
Remain until replaced or invalidated
Interpretation:
Next session often trades toward previous session extremes
Breaks of prior session range = regime shift
---
Kill Zones (High-Probability Windows)
Kill zones are specific time windows inside sessions where:
Liquidity spikes
Volatility expands
Institutional activity increases
Included zones:
Asia Kill Zone
London Open Kill Zone
New York Open Kill Zone
New York Close Kill Zone
They are visualized as shaded boxes separate from session boxes.
Why they matter:
Most breakouts occur during kill zones
Most reversals are initiated during kill zones
Liquidity sweeps cluster around these times
From the example:
You can see how price reacts specifically within these windows.
---
Session Oscillator (Embedded Momentum Engine)
Each session optionally includes its own oscillator plotted directly below the session box.
This is not a standard indicator overlay. It is:
Bound to the session range
Scaled relative to that session
Reset each session
Core mechanics:
Uses RSI-style calculation
Signal line = moving average of oscillator
Stored per bar within the session
Displayed as:
A mini panel under each session
With 30 / 50 / 70 reference levels
Example:
Interpretation:
Above 50 → bullish momentum within session
Below 50 → bearish momentum
30/70 → oversold/overbought zones
This gives you contextual momentum , not global momentum.
---
Why Session-Based Oscillators Matter
Standard oscillators ignore time segmentation.
This approach:
Resets momentum every session
Prevents carryover noise
Aligns signals with actual trading windows
So instead of:
“RSI is overbought”
You get:
“RSI is overbought within London session”
This is a much stronger contextual signal.
---
Labels & Range Statistics
Each session can display:
Session name (ASIA, LON, NY)
Range percentage
This helps quantify:
How much the market moved during that session
Which session is dominating volatility
---
Putting It All Together
This indicator gives you a full intraday map:
Where price moved (session boxes)
Where fair value sits (VWAP)
Where equilibrium lies (midline)
Where momentum stands (oscillator)
Where volatility expands (kill zones)
Where liquidity rests (extended highs/lows)
---
How to Use It
1) Identify the current session
Always start with:
Which session is active?
Each session behaves differently.
---
2) Use VWAP + midline for bias
Above VWAP + above mid → strong trend
Below VWAP + below mid → bearish control
Between → range
---
3) Watch kill zones for setups
Breakouts during kill zones are higher probability
Fake moves often occur just before them
---
4) Track previous session levels
Asia high/low often targeted during London
London extremes often targeted during NY
---
5) Use oscillator for confirmation
Momentum aligning with structure → stronger signal
Divergence → potential reversal
---
Strengths
Fully contextual intraday framework
Combines time, price, and volume-weighted logic
Visual and intuitive
Highly configurable
---
Summary
Trading Sessions Suite converts the trading day into a structured sequence of auctions. By combining session ranges, VWAP, kill zones, and a session-specific momentum engine, it provides a complete framework for understanding how price moves throughout the day. Instead of relying on static indicators, it aligns analysis with when liquidity actually enters the market, allowing for more precise timing, better context, and cleaner trade execution. Indicator
AG Pro Kill Zone Session Engine [AGPro Series]AG Pro Kill Zone Session Engine
Overview / What it does
AG Pro Kill Zone Session Engine is a session-based overlay designed to map the internal range behavior of selected intraday kill zones and preserve the most relevant reference levels after each zone has ended.
Instead of treating London, New York, Asia, and London Close as simple background highlights, this script organizes each enabled zone as a structured session event. During an active zone, it tracks the developing high, low, and optional midpoint. After the zone closes, it can carry those levels forward as clean horizontal references so traders can study how price interacts with prior session liquidity.
The script is built for users who want more context than a basic session coloring tool. It helps visualize where a session range formed, how wide it was relative to recent history, whether the session expanded or stayed narrow, and whether later price action interacted with that session through sweep-style behavior.
This is not a prediction engine and it does not attempt to forecast the next directional move. Its purpose is to structure session information into a cleaner analytical framework so traders can evaluate intraday context with more consistency.
Unique Edge
What makes this script different from a standard session indicator is that it does not stop at showing when a session is active.
Its core focus is session range formation plus post-session interaction. Each enabled kill zone can build a live range while active, then leave behind reference levels that remain usable after the session ends. This allows the chart to show not only where a session occurred, but also how later price responded to that session.
The script also adds session-width context. A zone can be classified relative to recent comparable zones so traders can quickly see whether the session was narrow, balanced, or expanded. That extra layer helps separate passive session activity from zones that created a more meaningful range.
Another important distinction is the sweep engine. Rather than only drawing static levels, the script can evaluate whether later price action interacts with prior session highs or lows in a sweep-oriented manner. This makes the tool more useful for traders who study liquidity behavior around specific intraday windows.
In short, this script is intended to function as a session behavior map, not as a simple background painter.
Methodology
The script works in four main steps.
1) Session detection
The user can enable or disable the supported kill zones individually and define session windows using a UTC offset and custom time settings. This keeps the script flexible across instruments, broker feeds, and local chart preferences.
2) Range construction
While a kill zone is active, the script updates the developing session high and low. Optional midpoint logic can also be shown. These values form the core session range for that specific zone.
3) Post-session reference mapping
When the zone ends, the completed high and low can remain on the chart as forward reference levels. This allows later price interaction to be evaluated against a completed session range rather than only during the active zone itself.
4) Sweep and width analysis
The script can evaluate reference-level interactions using its sweep logic and can also classify the completed width of a zone relative to prior zones of the same type. This helps the user distinguish between narrow, balanced, and expanded sessions.
Signals & Alerts
This script is primarily an analytical overlay, but it also supports alertable events around session activity and sweep behavior.
Depending on the enabled options, the script can be used to monitor:
- when a new kill zone becomes active,
- when price interacts with a prior session high,
- when price interacts with a prior session low,
- when sweep-oriented behavior is detected relative to a carried-forward reference range.
These events are designed to describe chart conditions, not to deliver standalone trade calls.
The visual outputs can include:
- session background shading,
- current and completed session high/low levels,
- optional midpoint levels,
- compact session summary labels,
- sweep markers,
- an information panel showing active zone status, width context, reference zone, and sweep status.
Key Inputs
The script includes a focused but flexible input set so users can adapt it without overcomplicating the chart.
Core controls include:
- UTC offset and custom session timing,
- individual enable/disable controls for Asia, London, New York, and London Close,
- high/low visibility,
- midpoint visibility,
- projection length for completed session levels,
- label density and summary behavior,
- panel visibility, placement, and text sizing,
- sweep mode and alert controls,
- visible session memory so the chart can stay cleaner on higher timeframes.
These controls allow the tool to be used in a more detailed mode on lower intraday charts or in a more compressed mode on higher timeframes.
Limitations & Transparency
This script is designed as a context tool. It does not define trade entries, stop placement, or risk management for the user.
Session behavior can vary across instruments and feeds, so identical settings may not produce equally meaningful output on every market. Some assets respond more clearly to session-based reference levels than others.
Sweep logic is also a chart-interpretation aid, not a certainty model. A detected sweep does not imply immediate reversal, continuation, or trade validity on its own. It simply highlights a specific type of interaction with a prior session reference.
The script is best suited to intraday analysis. While it can still display useful information on higher timeframes, the underlying logic is rooted in session behavior, so lower intraday charts will usually provide more direct visual relevance.
As with any visual overlay, increasing history depth or label density may add chart clutter. For that reason, the script includes controls to compress memory and reduce label load when needed.
Risk Disclosure
This script is provided for educational and analytical use only.
It is not financial advice, not a signal service, and not a promise of outcome. It does not guarantee reversals, breakouts, continuations, or profitable execution. Any trading decision should be made within the user's own process, risk model, and market understanding.
The intended use of this script is to help organize session structure, liquidity references, and post-session interaction on the chart so that traders can make more informed observations with a clearer visual framework.
Indicator
